VentoBox Air Filtration System for Bambu Lab P2S

Name: VentoBox Air Filtration System for Bambu Lab P2S
Brand: Thrutheframe
Price: 79.95 AUD
Availability: InStock

$79.95 AUD

Sale Sold out

Tax included.

Colour/Material All Black PETG Black Body/Red Accents PETG Black Body/Lime Green Accents PETG Black Body/White Accents PETG All Black ASA Black Body/White Accents ASA

Fan Type Manual control (2 wire No PWM control) Printer controlled (4 wire PWM control)

Product variants

Quantity

Designed by Thrutheframe · Manufactured by JC-3D

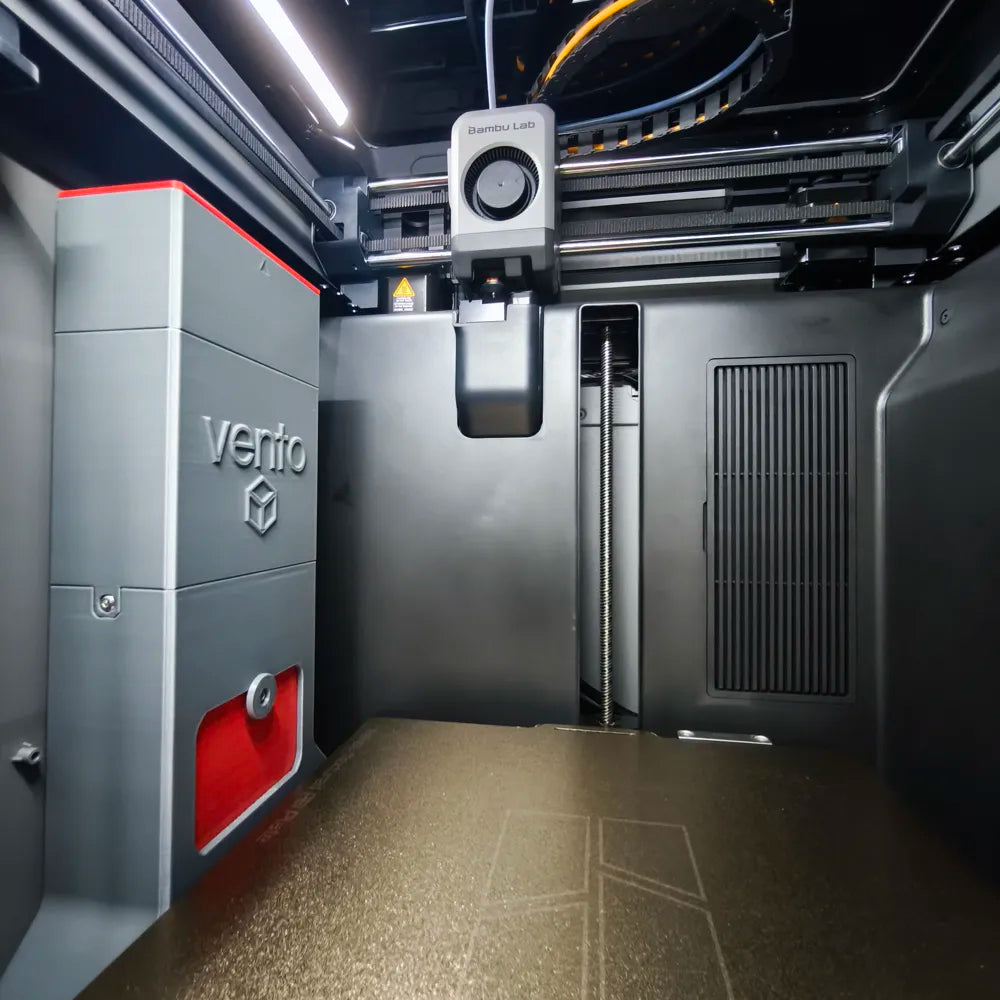

ventoBox is an air filtration solution designed specifically for the Bambu Lab P2S. Developed by Thrutheframe and produced in partnership with JC-3D for the Australian & New Zealand region, ventoBox is designed from the ground up to deliver effective filtration without compromising airflow or chamber performance. At its core is a 7530 blower fan that moves air through HEPA and activated carbon filters to help reduce airborne particles and odours generated during printing. When used, ventoBox acts as a first line of defence against fumes and VOCs, helping keep workspace air cleaner while you print—especially in home or shared environments.

Manufactured and assembled in Australia by JC-3D. Support domestic manufacturing and businesses.

Dual Operating Modes

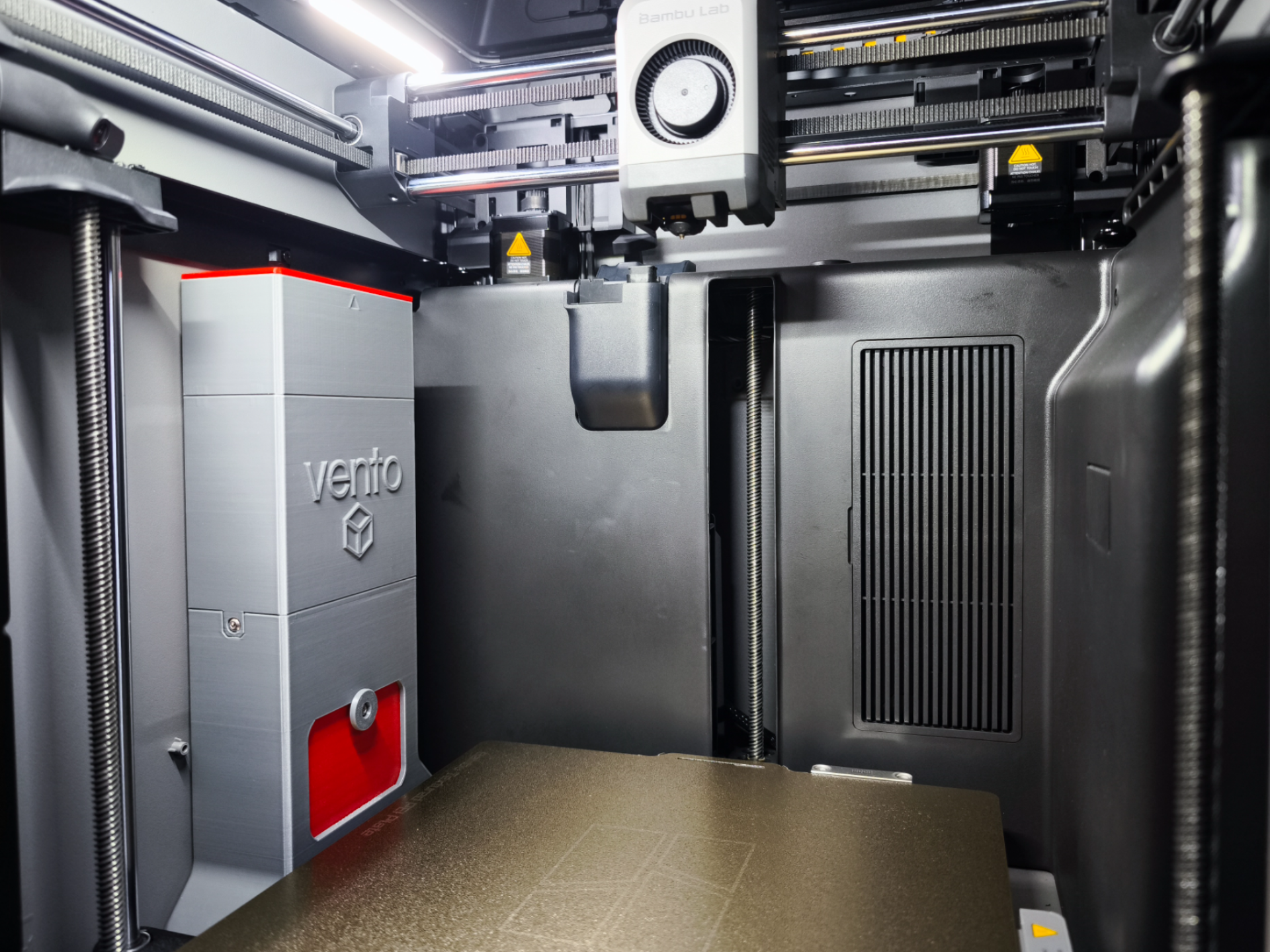

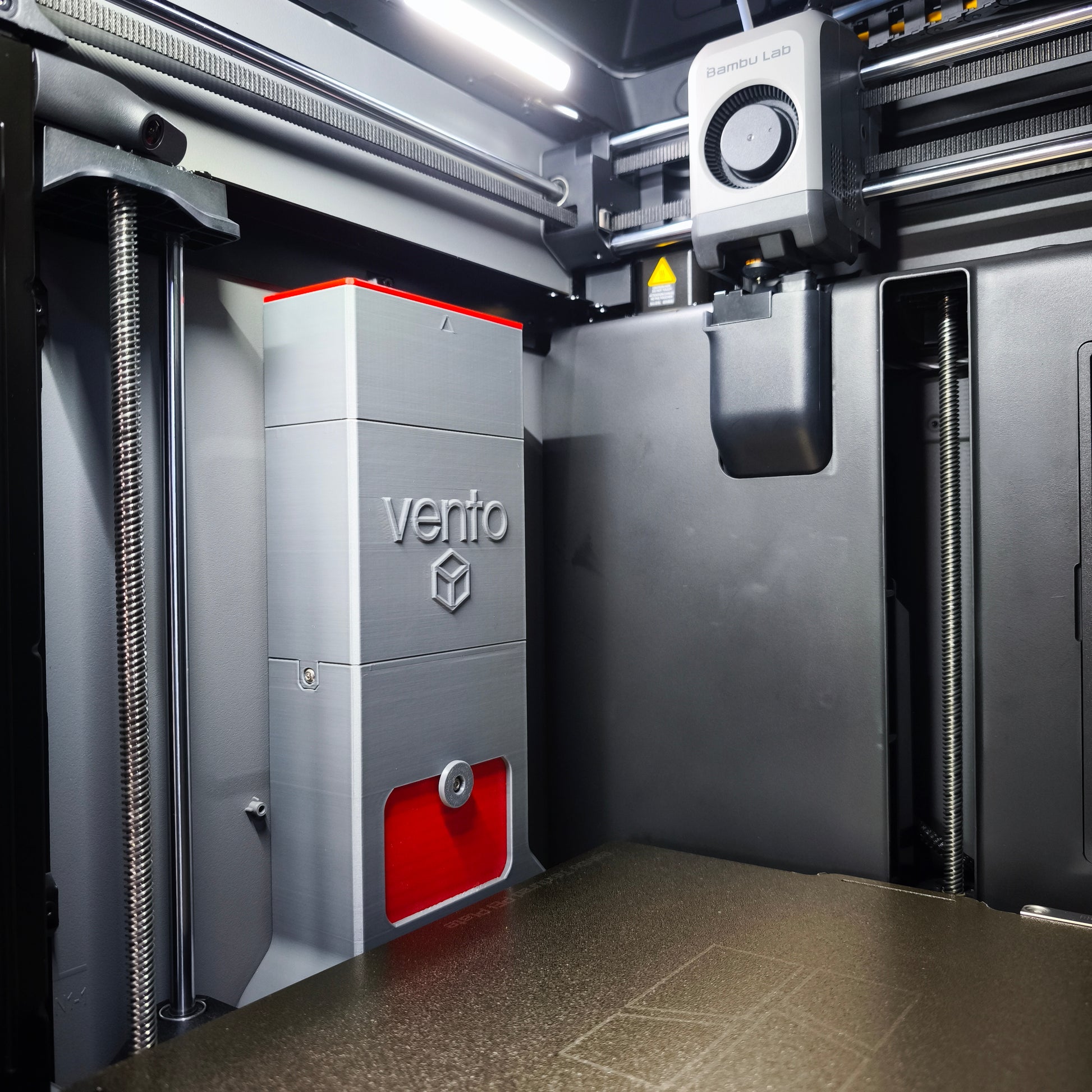

Single-Pass Mode
Designed for materials such as PLA and PETG, Single-Pass Mode allows ventoBox to operate as an exhaust path. Air is drawn from the printer chamber, passed through the filtration stack, and expelled as filtered air outside the printer. This mode is well-suited for lower-temperature printing, helping manage chamber conditions while providing cleaner air in home or work environments.

Multi-Pass Mode
For higher-temperature materials such as ABS, ASA, and Nylon, ventoBox operates in Multi-Pass Mode. Warm air is drawn from near the build plate and redirected toward the lower section of the chamber to promote a more consistent temperature throughout the build volume. This recirculation of warm air helps stabilise the thermal environment required for these materials.

Fully Assembled Sets:

We are offering two variations of assembled ventoBoxes.

Option 1 is the 2 pin, non-pwm version that runs off a seperate power supply. We include this power supply.

Includes all printed parts and hardware. Comes full assembled, ready for use.

Full BOM is below:

D6x3mm magnets - 8pcs
M3x8mm BHCS - 3pcs
BT3x8mm self threading screw - 1pcs
VHB tape (1mm thick)
7530 blower fan - 1pcs
Activated carbon pellets (acid-free)
HEPA filter ( iLife v5 vacuum)

24v power supply with inline on/off switch.

Ready to install (30 min)

Option 2 is the slicer controlled, 4 pin PWM version which will plug in directly in to the back of the printer.Includes all printed parts and hardware. Comes full assembled, ready for use.
